General Technical Specifications
LCD Panel Brands
|
LG or Samsung
|
Panel Sizes
|
42", 46", 47", 49", 55", 65"
|
Display Color
|
16.7M
|
Response time.
|
≤ 8ms
|
Contrast Ratio
|
3500:1
|
Brightness (Peak)
|
450cd/m2, 500cd/m2, 700cd/m2, 800cd/m2
|
View Area
(L*H) (mm)
|
1018.08*572.67
|
Resolution
|
1920*1080
|

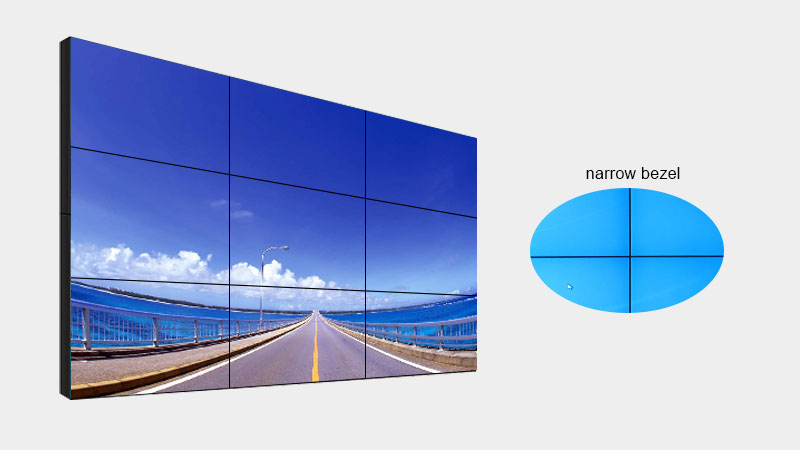

Gap Between Panels
|
1.7mm/1.8mm/3.5mm/4.9mm/5.3mm/5.5mm/6.3mm
|
Backlight
|
LED/WLED
|
Certificate
|
FCC, CE, ROHS
|
Environmental Condition
|
|
Temperature
|
0°C~ 60°C
|
Humidity
|
10% ~ 90% (no condensation)
|

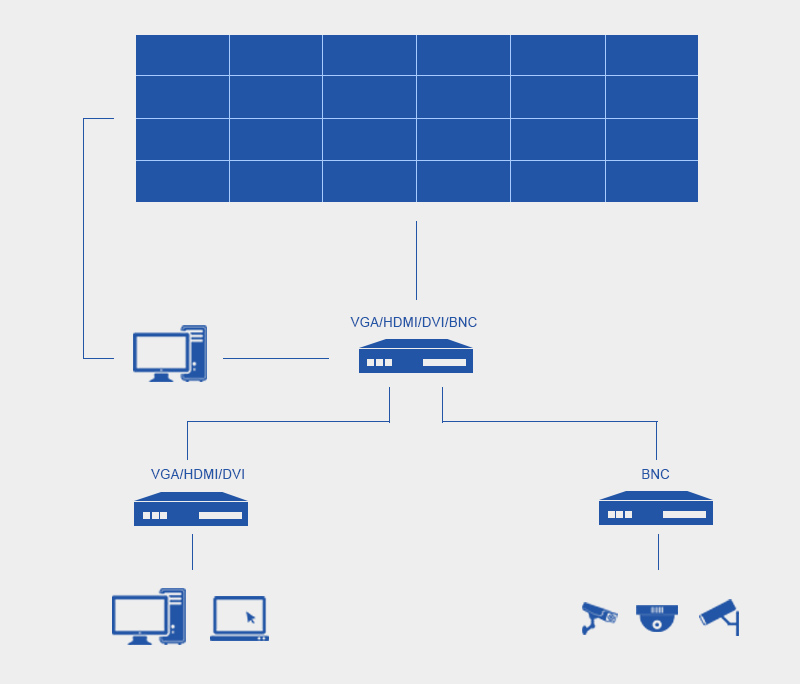

Input Interfaces
|
BNC In x 2, BNC Out x 1,VGA,HDMI,DVI, RS232(Rj45)
|
Weight
|
27.5kg
|
Viewing Angle
|
178°/178°(H,V)
|
Power
|
220W
|
Response Time
|
6ms
|
Using Life
|
50,000(hr)
|
Control Interface
|
Remote controller or RS232
|
Spliced Quantity
|
2x2, 3x3, 4x4, 2x3, 1x3, 3x2 and many more |
Installation Way
|
Cabinet,floor standing or wall mount
|
On Screen Display (OSD) Language
|
English
|
Screen Catalog - Samsung and LG panels
Catalog Number |
Spec Sheet |
Size |
Bezel |
HK-DID-42-22-LG |
Download |
42 Inch |
22mm |
HK-DID-46-305-SA |
Download |
46 Inch |
3.5mm |
HK-DID-46-505-LG |
Download |
46 Inch |
5.5mm |
HK-DID-47-409-LG |
Download |
47 Inch |
4.9mm |
HK-DID-49-305-LG |
Download |
49 Inch |
3.5mm |
HK-DID-55H-107-SA |
Download |
55 Inch |
1.7mm |
HK-DID-55H-305-SA |
Download |
55 Inch |
3.5mm |
HK-DID-55-305-SA |
Download |
55 Inch |
3.5mm |
HK-DID-55H-305-LG |
Download |
55 Inch |
3.5mm |
HK-DID-55-305-LG |
Download |
55 Inch |
3.5mm |
HK-DID-55-305-BOE |
Download |
55 Inch |
3.5mm |
